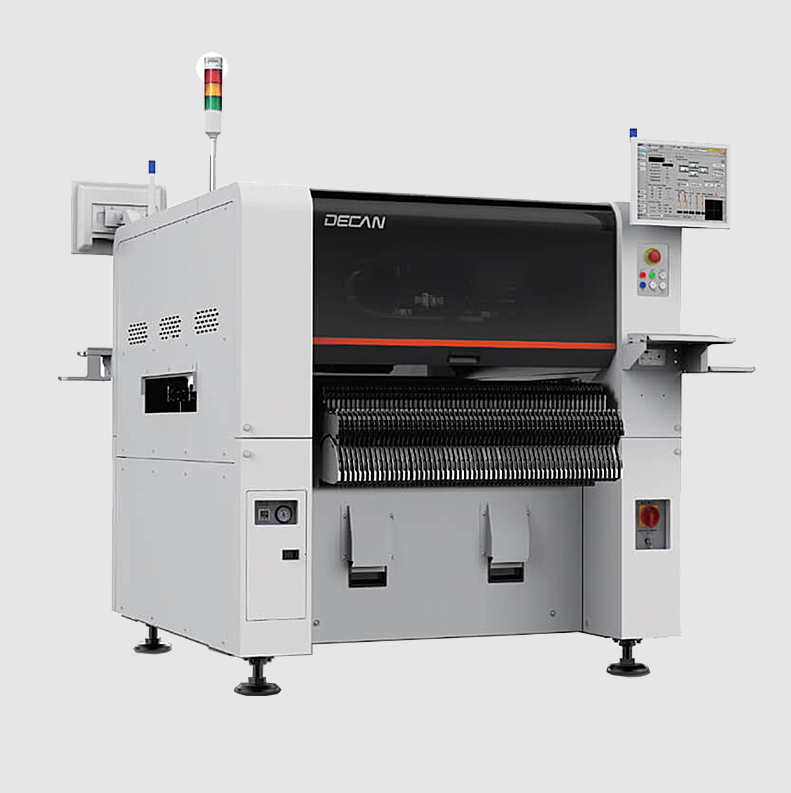

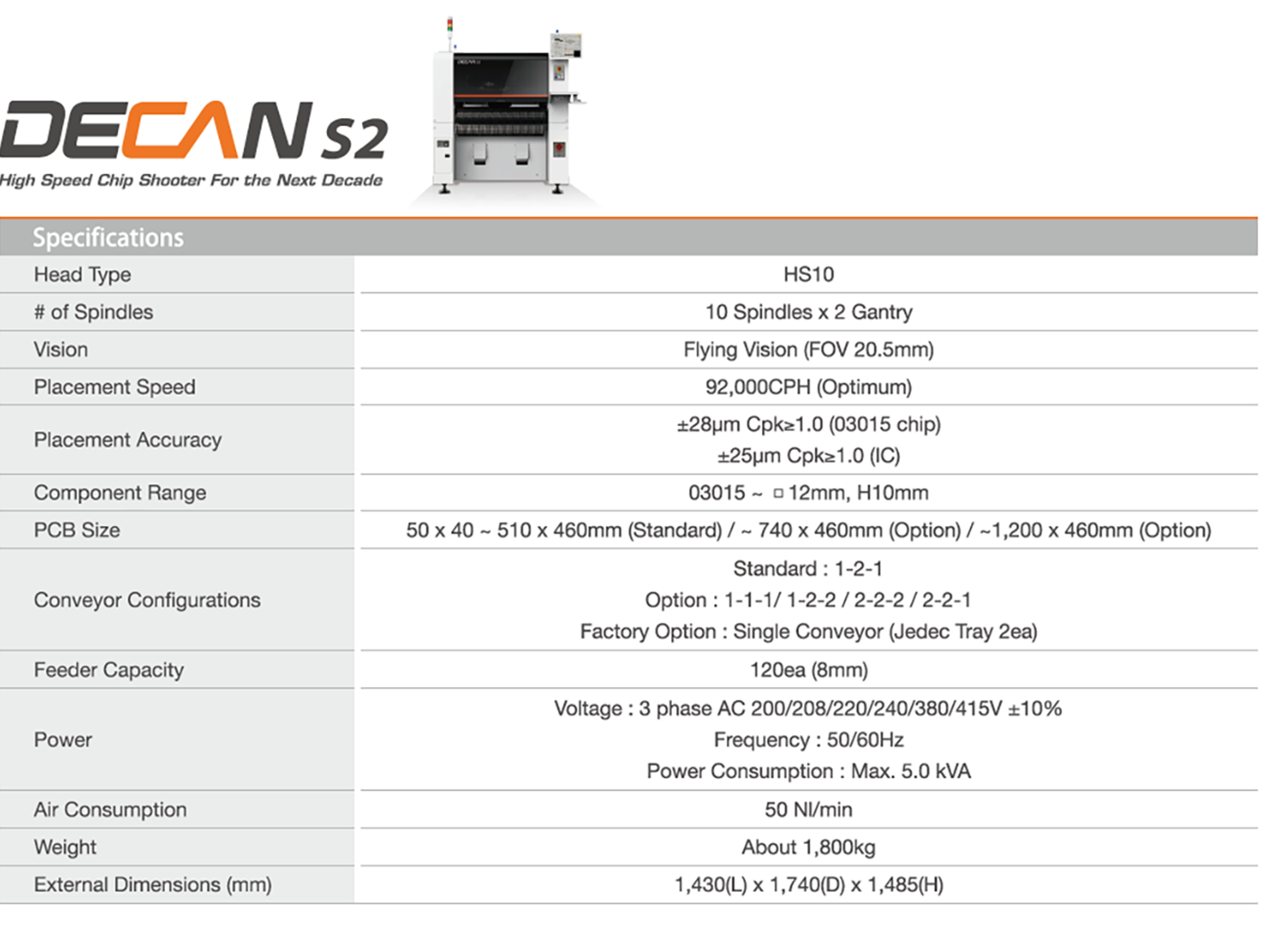

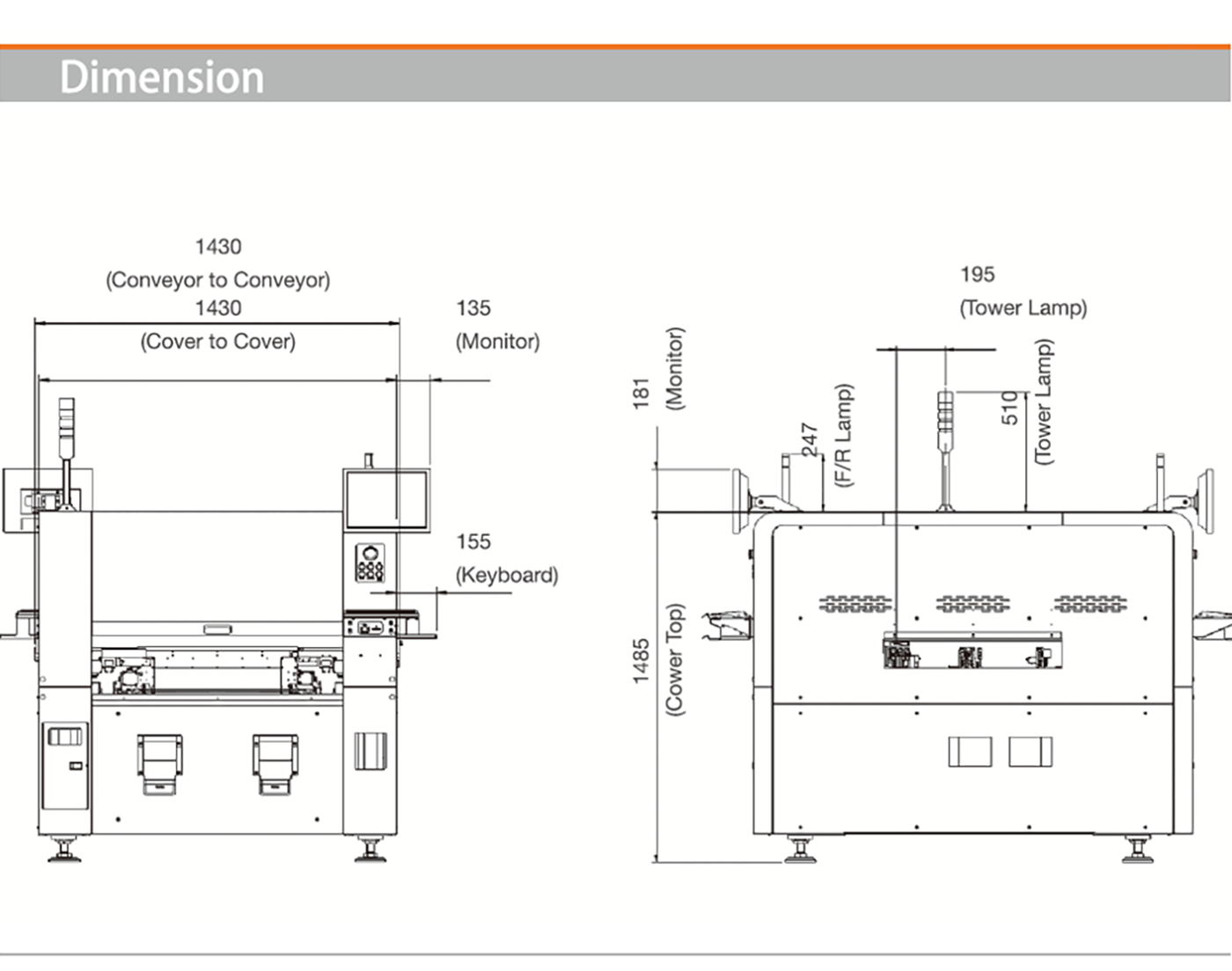

Hanwha Decan S2 SMT Pick And Place Machine
High Productivitymorel
Optimizing PCB transportation paths for productivity improvement
Modular Conveyors
■ An optimal conveyor model configuration is possible according to production line composition (shuttle ↔ dual) applied with a modular conveyor that is replaceable on site.
■ PCB supply time is shortened as a result of high-speed shuttle conveyor operation. Minimized head path for improved equipment speed
Twin Servo Control.
■ Ensuring high-speed operation with a linear motor application to the Y axis, and twin servo control High-speed Flying Head.
■ Minimized head movement path through recognizing parts during transportation following parts installation.

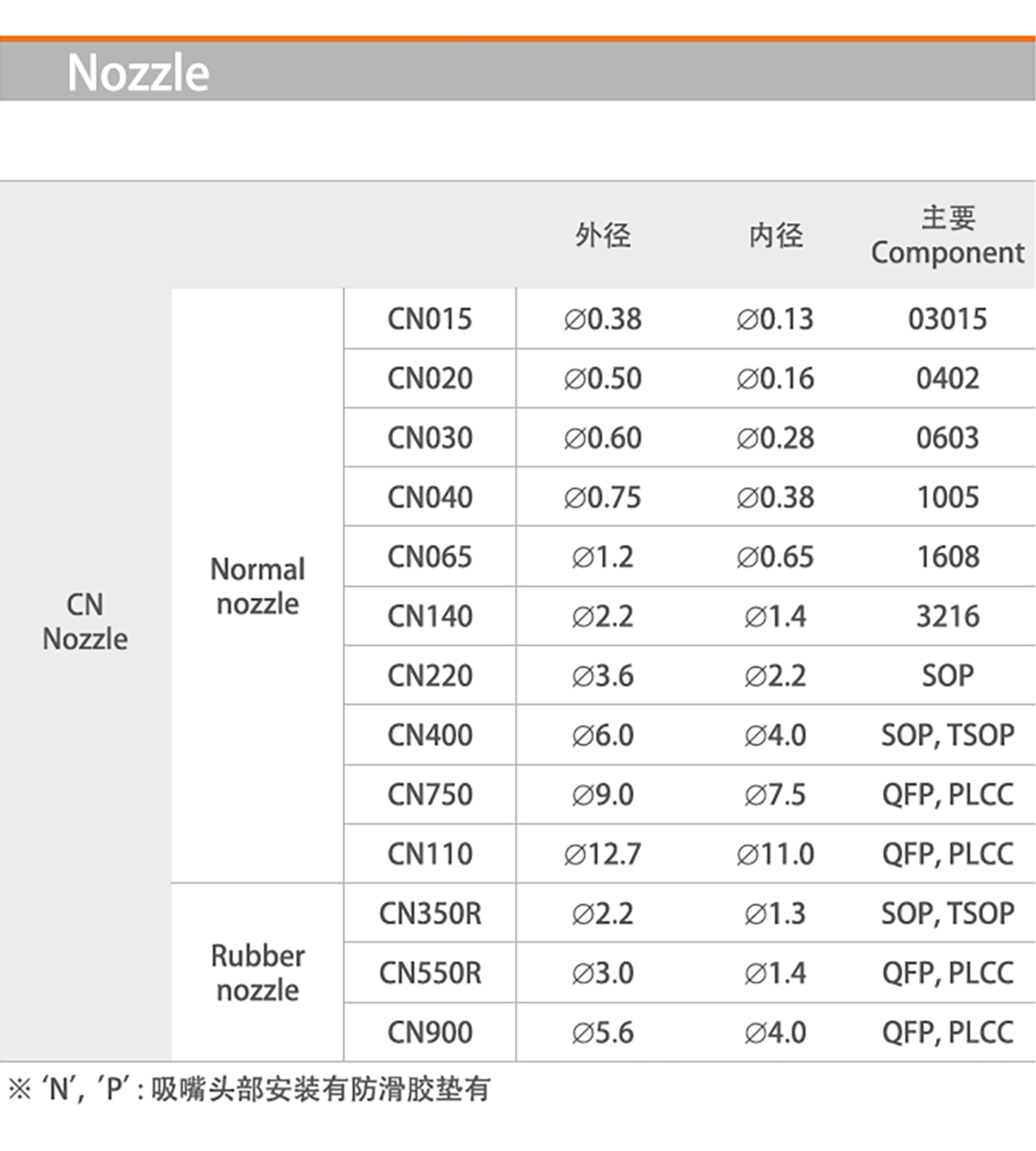

■ 10-spindle head with individually operating Z axes.
HIGH RELIABILITYmorel
Placement Accuracy: ±28㎛ (03015), ±25㎛ (IC)
■ Applied with a high-precision linear scale and rigid mechanism.
■ Provides precision calibration algorithms and diverse automatic calibration functions.
FLEXIBLE LINE SOLUTIONmorel
Provides optimal line solutions through versatility and productivity improvement
DECAN Line
■ Optimal line configuration from chips to uniquely-shaped components according to options setup
Equipment capable of responding to large-scale PCBs, which can be remodeled on site
■ Standard equipment can be remodeled on site to equipment capable of large-scale PCB handling
– Responsive to a maximum 1,200 x 460mm PCB
Responsive to uniquely-shaped components (including tray components)
DECAN Line
■ Optimal line configuration from chips to uniquely-shaped components according to options setup
Equipment capable of responding to large-scale PCBs, which can be remodeled on site
■ Standard equipment can be remodeled on site to equipment capable of large-scale PCB handling
– Responsive to a maximum 1,200 x 460mm PCB
Responsive to uniquely-shaped components (including tray components)
EASY OPERATIONmorel
Strengthened equipment software operation convenience
■ Convenient production and editing of work programs with built-in equipment optimization software.
■ Provision of a range of work data and information on a large-scale LCD screen.
High-precision, convenient electric feeder.
■ Calibration and maintenance-free electric feeder.
■ Improved work convenience with a single reel bank mounted feeder.
■ Improved productivity through the provision of automatic parts pick-up position alignment between feeders.
Reduced work load through parts connection automation (smart feeder).
■ Automatic loading and splicing capabilities implemented as an industry first .
– Significantly reduction in work time through feeder preparation and parts connection operation automation which were previously carried out manually.
■ Zero consumables costs for parts connection attained.
■ Convenient production and editing of work programs with built-in equipment optimization software.
■ Provision of a range of work data and information on a large-scale LCD screen.
High-precision, convenient electric feeder.
■ Calibration and maintenance-free electric feeder.
■ Improved work convenience with a single reel bank mounted feeder.
■ Improved productivity through the provision of automatic parts pick-up position alignment between feeders.
Reduced work load through parts connection automation (smart feeder).
■ Automatic loading and splicing capabilities implemented as an industry first .
– Significantly reduction in work time through feeder preparation and parts connection operation automation which were previously carried out manually.
■ Zero consumables costs for parts connection attained.
