Feature
Improve quality
▶ Abnormal quality due to dust
▶The product is unqualified due to residual static electricity
Improve efficiency
▶Improve printing quality
▶Improve SPI pass-through rate
▶Improve AOI pass-through
lower the cost
▶Labor costs
▶Cost of repaired materials
▶Equipment shutdown
Reduce churn rate
▶Frequent repairs by technicians lead to fatigue
▶People with frequent SPI and AOI alarms are prone to irritability

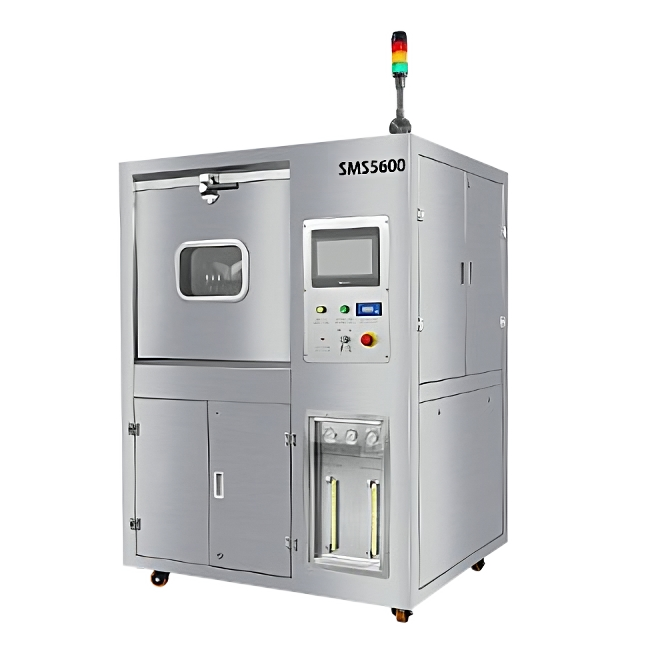

SMS-5600 PCBA off-line cleaning machine is an off-line cleaning machine with compact structure, energy saving and environmental protection, and can actually batch clean the cleaning machine.

Feature

▶The cleaning tank, the original tank, and the spray tank are designed with a liquid level sensor overflow alarm.

▶The opening of the front door is designed with photoelectric sensor protection. When the equipment is cleaning, if the front door is not closed, the cleaning will stop prevent liquid or water from spraying out.

▶The air source, DI water inlet, and heating system all have PLC monitoring and alarm systems, and double protection is designed to ensure that any failure will not damage the equipment.

▶The main parts are imported parts and well-known brands in the industry, such as pumps from Ingersoll Rand, CKD solenoid valves, Panasonic PLC, German rails.

▶The operating mechanism adopts the cleaning object to be thrown up and down on the screen, imported guide rail + stepping drive, and the spray arm and air knife are fixed.

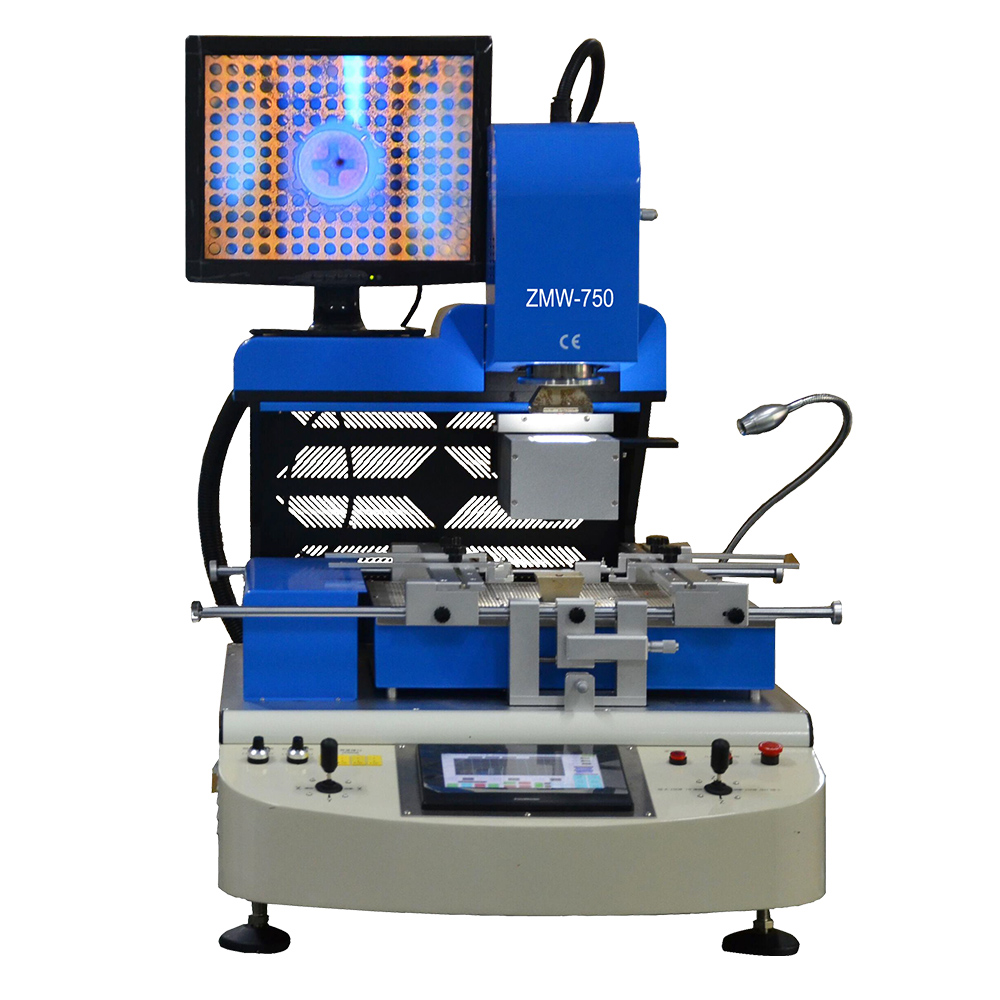

Features
▶    Touch screen with human interface, heating time, heating temperature, reflow temperature rate, advanced alarming, vacuum time all can set inside the touch screen, simple operation, easy learn.
▶    PLC import from Japan, temperature control module use China famous brand, display three temperature curves,4pcs independent temperature sensor, which can measure the different place temperature of the chips,make sure the rework rate.

The AIS50X Online SMT/THT/DIP AOI Machine is an advanced automated optical inspection (AOI) solution meticulously designed for high-speed, accurate quality inspection of electronics assembly processes, including Surface Mount Technology (SMT), Through-Hole Technology (THT), and Dual In-Line Package (DIP) components. By providing fast, reliable defect detection, the AIS50X significantly improves production quality, enhances productivity, and ensures compliance with strict industry standards across diverse electronics manufacturing environments.

The AIS50X excels at accurately identifying a broad spectrum of common assembly defects, including missing or incorrectly placed components, solder bridges, misalignment, incorrect polarity, tombstoning, lifted leads, insufficient soldering, and other critical PCB assembly issues. Utilizing state-of-the-art, high-resolution imaging technology and intelligent inspection algorithms, this AOI machine swiftly captures and analyzes detailed images of components and solder joints, delivering highly reliable and repeatable results.

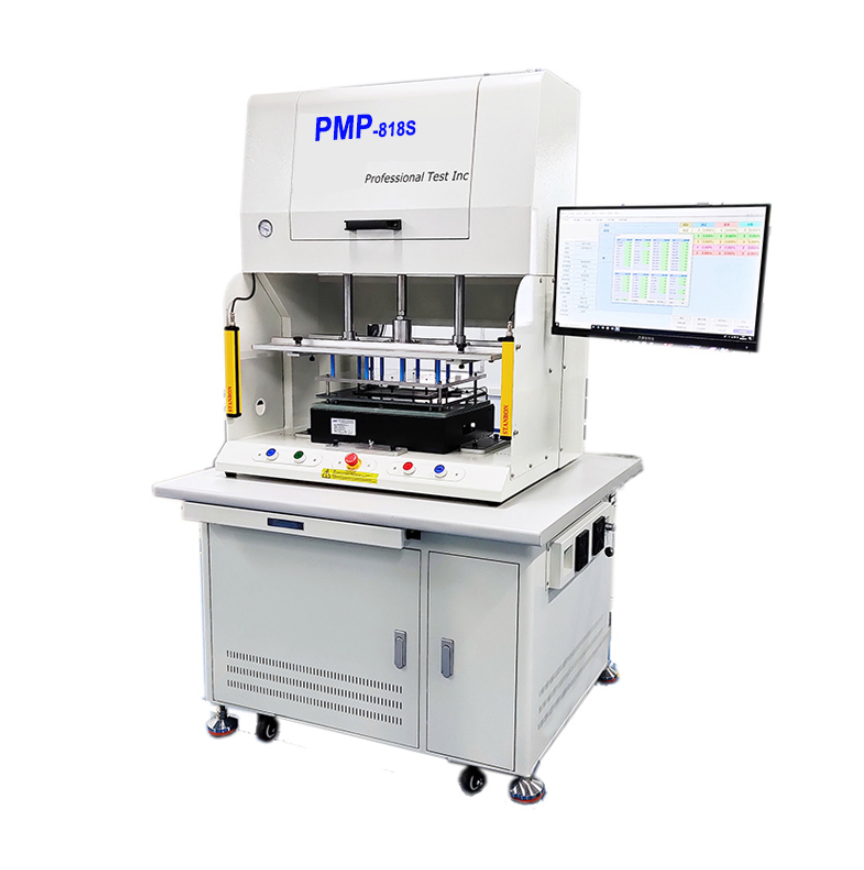

The PMP-818S In-Circuit Tester is a cutting-edge, high-performance testing solution designed to revolutionize quality control in the electronics manufacturing industry. This advanced in-circuit tester is specifically engineered to ensure the functionality, reliability, and quality of printed circuit board assemblies (PCBAs) by detecting defects such as short circuits, open circuits, incorrect component values, and faulty connections during the production process. With its precision and efficiency, the PMP-818S is an indispensable tool for manufacturers aiming to deliver flawless electronic products.

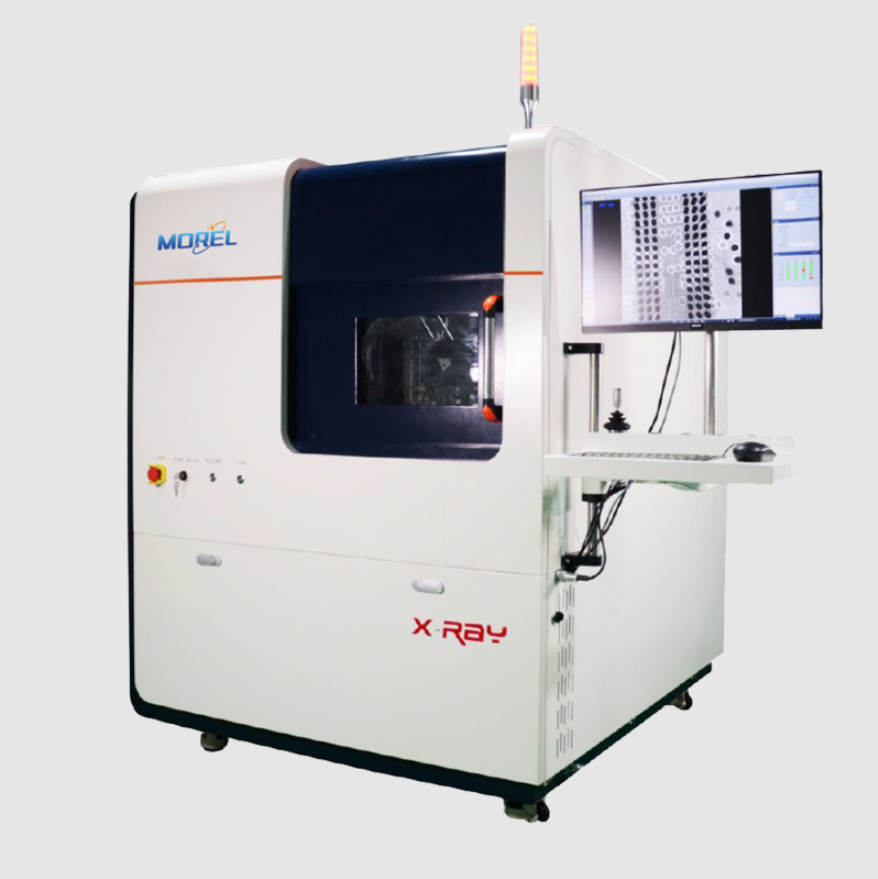

S-7200 X-Ray Inspection System: Precision Non-Destructive Testing for PCB and Electronics Manufacturing

The S-7200 X-Ray Inspection System is an industry-leading, high-resolution non-destructive inspection tool specifically engineered to meet the rigorous demands of modern electronics manufacturing. It provides advanced, real-time X-ray imaging technology to thoroughly examine printed circuit boards (PCBs), electronic assemblies, and internal component structures with unmatched precision and accuracy.

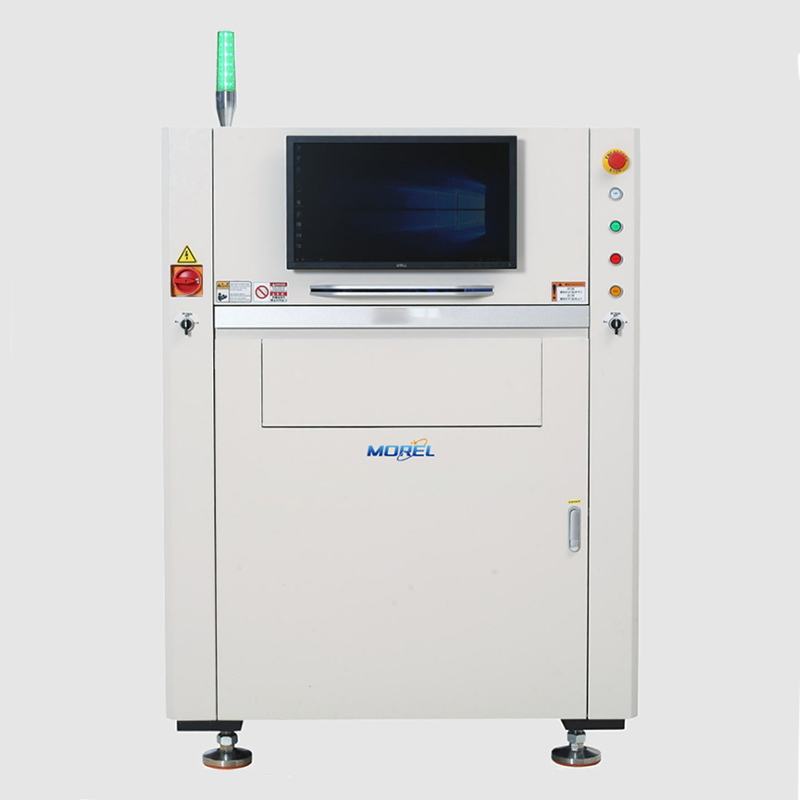

3D online SPI HMS-5 HMS-5-D is used to detect and monitor the quality of solder paste printing. With the increasing precision of electronic products, chip components are becoming smaller and smaller, and the requirements for solder paste printing quality are gradually increasing. SLE/SLE-D can Effectively guarantee the printing quality. Improve the printing quality, reduce the defect rate of the product, save labor, and improve the production efficiency.
